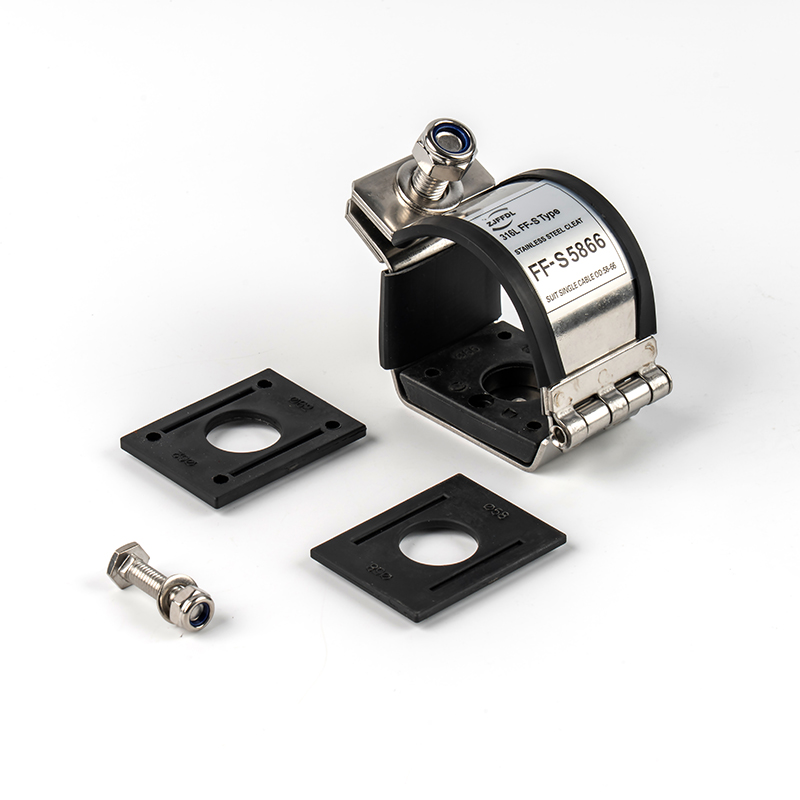

Stainless Steel 316 Single Cable Cleats For Cable Management ES Series

FENGFAN Cable Cleats are designed to support and retain your cables within your cable tray system in every condition. More importantly, they prevent the damage in short-circuit conditions. Unfortunately, short circuit always happens, and when it do, it's destructive and dangerous to the cables and cable system. FENGFAN Cable Cleats are one of the first lines of defense to help protect the person, the cables and cable system.
CONTACT US
  • Stainless Steel 316 Single Cable Cleats For Cable Management ES Series
PREV：Stainless Steel 316 Trefoil Cable Cleats For Cable ManagementNEXT：Stainless Steel 316 Trefoil Cable Cleats For Cable Management ER Series
Technical parameter
F-S(ES)Single Cable Cleats
Part Number Cable Range Dimensions
Min. Dia. Mid.Dia. Max.Dia. H W
mm in. mm in. mm in. mm in. mm in. mm in.
FF-S3239 32  1.26  35  1.38  / /  39  1.54  74  2.91  81  3.19
FF-S3745 37  1.46  40  1.57  / /  45  1.77  77  3.03  88  3.46
FF-S4452 44  1.73  47  1.85  / /  52  2.05  83  3.27  94  3.70
FF-S5159 51  2.01  54  2.13  / /  59  2.32  87  3.43  102  4.02
FF-S5866 58  2.28  61  2.40  / /  66  2.60  91  3.58  110  4.33
FF-S6573 65  2.56  68  2.68  / /  73  2.87  97  3.82  116  4.57
FF-S7385 73  2.87  75  2.95  79  3.11   85  3.35  101  3.98  131  5.16
FF-S8494 84  3.31  86  3.39  90  3.54   94  3.70  110  4.33  140  5.51
FF-S94118 94  3.70  98  3.86  106  4.17  118  4.65  134  5.28  163  6.42
FF-S118130 118  4.65  120  4.72  124  4.88  130  5.12  146  5.75  175  6.89
FF-S127150 127  5.00  131  5.16  139  5.47  150  5.91  166  6.54  195  7.68
