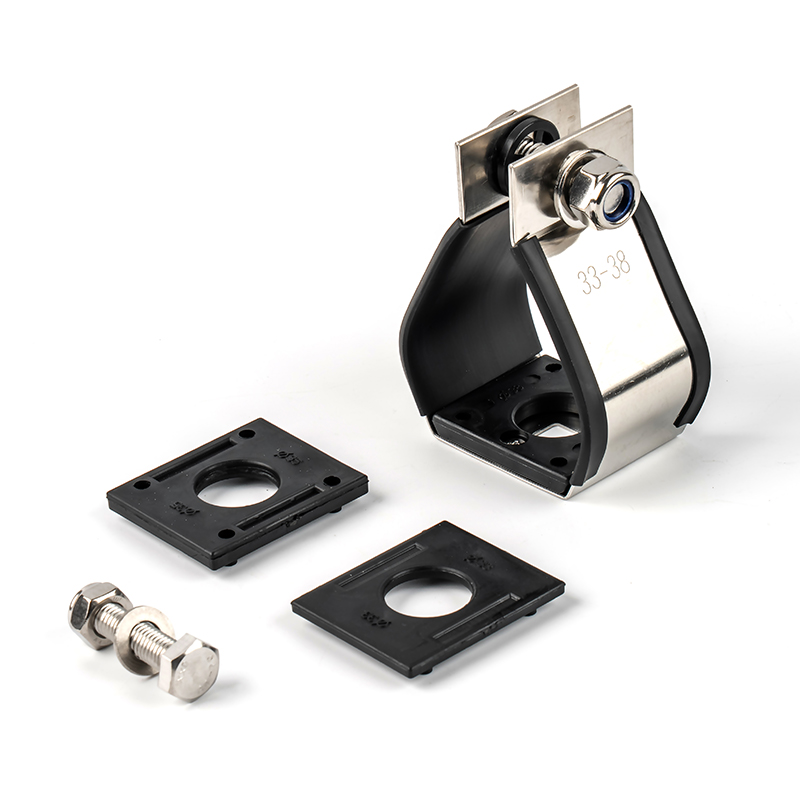

| FF-VRT Trefoil Cable Cleats | ||||||||||
|
Part Number |
Cable Range | Dimensions | ||||||||
| Min. Dia. | Mid. Dia. | Max. Dia. | H | W | ||||||
| mm | in. | mm | in. | mm | in. | mm | in. | mm | in. | |
| FF-VRT1924 | 19 | 0.75 | 22 | 0.87 | 24 | 0.94 | 79 | 3.11 | 55 | 2.17 |
| FF-VRT2228 | 22 | 0.87 | 25 | 0.98 | 28 | 1.10 | 88 | 3.46 | 63 | 2.48 |
| FF-VRT2631 | 26 | 1.02 | 29 | 1.14 | 31 | 1.22 | 94 | 3.70 | 69 | 2.72 |
| FF-VRT3035 | 30 | 1.18 | 33 | 1.30 | 35 | 1.38 | 100 | 3.94 | 77 | 3.03 |
| FF-VRT3338 | 33 | 1.30 | 35 | 1.38 | 38 | 1.50 | 106 | 4.17 | 83 | 3.27 |
| FF-VRT3642 | 36 | 1.42 | 38 | 1.50 | 42 | 1.65 | 113 | 4.45 | 91 | 3.58 |
| FF-VRT4046 | 40 | 1.57 | 44 | 1.73 | 46 | 1.81 | 121 | 4.76 | 99 | 3.90 |
| FF-VRT5159 | 51 | 2.01 | 56 | 2.20 | 59 | 2.32 | 147 | 4.72 | 125 | 5.12 |
* Trefoil Cable Cleat FF-VRT body material thickness 1.1mm
