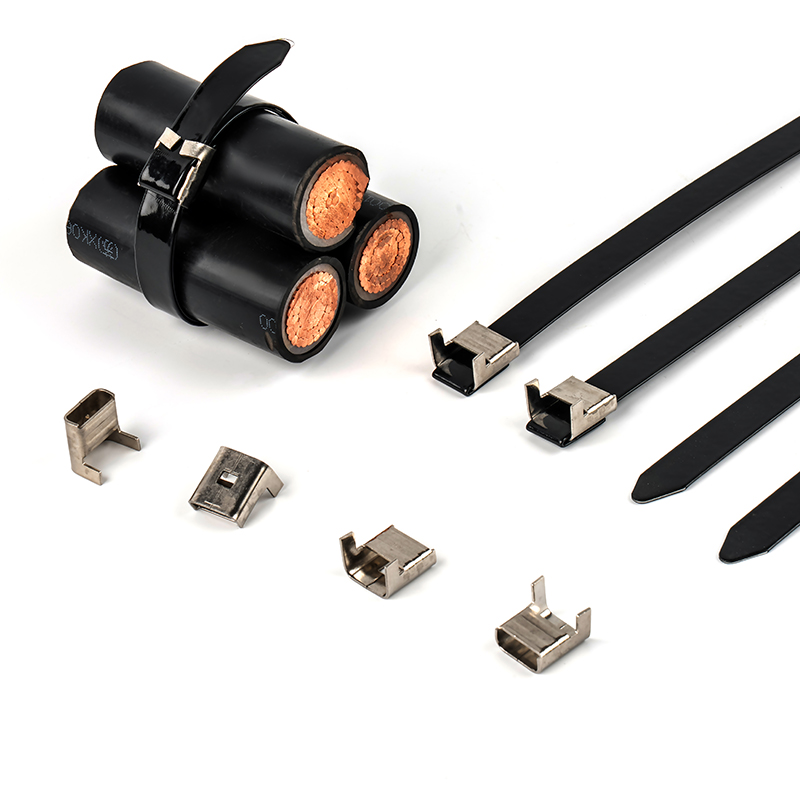

Technical Information
Material: Stainless Steel Grade 304or 316
Coating: Polyester/ Epoxy, Nylon 11
WorkingTemp: 40°Cto 150°C
Description: Black Strap with Metallic Buckle
Flammability. Fireproof
Other Properties Uv-resistant, Halgenfree nontoxic
Product Feature
Coated band provides additional edge protection, preventing corrosion between dissimilar materials
| Item No. | Width | Length | Thickness | Max.Bundle Dia. | Min. Bundle Dia. | Min .Tensile Strength | Recommended InstallationTool |
||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | ||
| FZLSP-10*300 | 10 | 0.39 | 300 | 11.81 | 0.45 | 0.018 | 90 | 3.54 | 19.1 | 0.75 | 2500 | 560 | DQH DQL LQA LQA-S LQD LQD-S |
| FZLSP-10*400 | 400 | 15.75 | 120 | 4.72 | |||||||||
| FZLSP-10*500 | 500 | 19.69 | 150 | 5.91 | |||||||||
| FZLSP-10*600 | 600 | 23.62 | 185 | 7.28 | |||||||||
| FZLSP-10*700 | 700 | 27.56 | 215 | 8.46 | |||||||||
| FZLSP-10*800 | 800 | 31.5 | 250 | 9.84 | |||||||||
| FZLSP-10*1000 | 1000 | 39.37 | 310 | 12.2 | |||||||||
| FZLSP-10*1200 | 1200 | 47.24 | 370 | 14.57 | |||||||||
| FZLSP-12*300 | 12 | 0.47 | 300 | 11.81 | 0.5 | 0.02 | 90 | 3.54 | 25.4 | 1 | 2800 | 630 | DQH DQL LQA LQA-S LQD LQD-S |
| FZLSP-12*400 | 400 | 15.75 | 120 | 4.72 | |||||||||
| FZLSP-12*500 | 500 | 19.69 | 150 | 5.91 | |||||||||
| FZLSP-12*600 | 600 | 23.62 | 185 | 7.28 | |||||||||
| FZLSP-12*700 | 700 | 27.56 | 215 | 8.46 | |||||||||
| FZLSP-12*800 | 800 | 31.5 | 250 | 9.84 | |||||||||
| FZLSP-12*1000 | 1000 | 39.37 | 310 | 12.2 | |||||||||
| FZLSP-12*1200 | 1200 | 47.24 | 370 | 14.57 | |||||||||
| FZLSP-15*300 | 15 | 0.59 | 300 | 11.81 | 0.5 | 0.02 | 85 | 3.35 | 25.4 | 1 | 3500 | 790 | DQH DQL LQA LQA-S LQD LQD-S |
| FZLSP-15*400 | 400 | 15.75 | 120 | 4.72 | |||||||||
| FZLSP-15*500 | 500 | 19.69 | 150 | 5.91 | |||||||||
| FZLSP-15*600 | 600 | 23.62 | 185 | 7.28 | |||||||||
| FZLSP-15*700 | 700 | 27.56 | 215 | 8.46 | |||||||||
| FZLSP-15*800 | 800 | 31.5 | 250 | 9.84 | |||||||||
| FZLSP-15*1000 | 1000 | 39.37 | 310 | 12.2 | |||||||||
| FZLSP-15*1200 | 1200 | 47.24 | 375 | 14.76 | |||||||||
Brand Name: FengfanApproved Certificate: DNV & ABS.Product Description: Cable Fixing Band and ClipsThe Lower Cost Alternative to Cable Cleats Product Benefits- Low profile finish- 316 grade stain...
See Detail

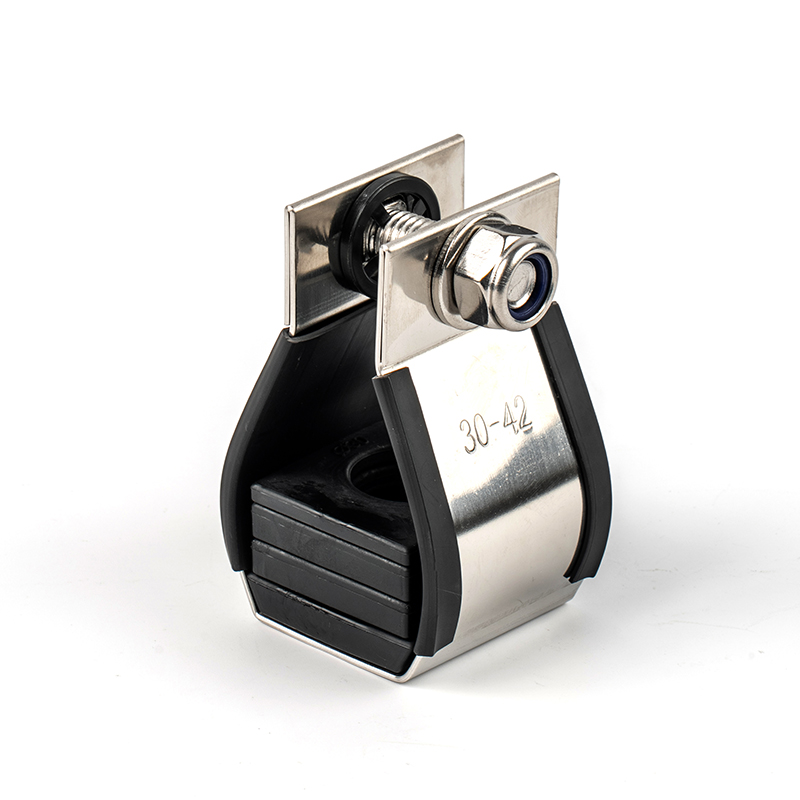

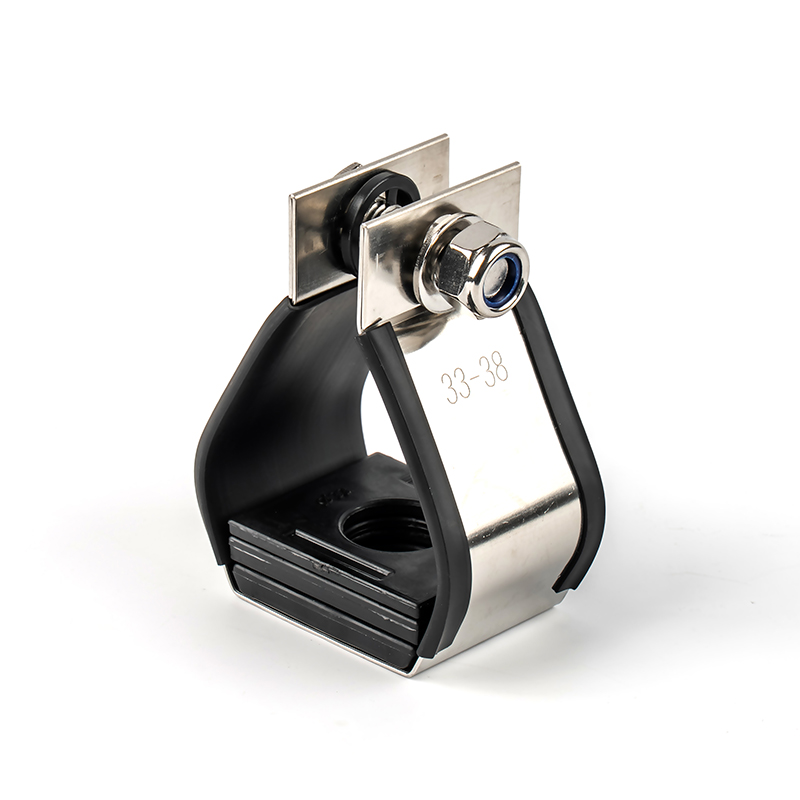

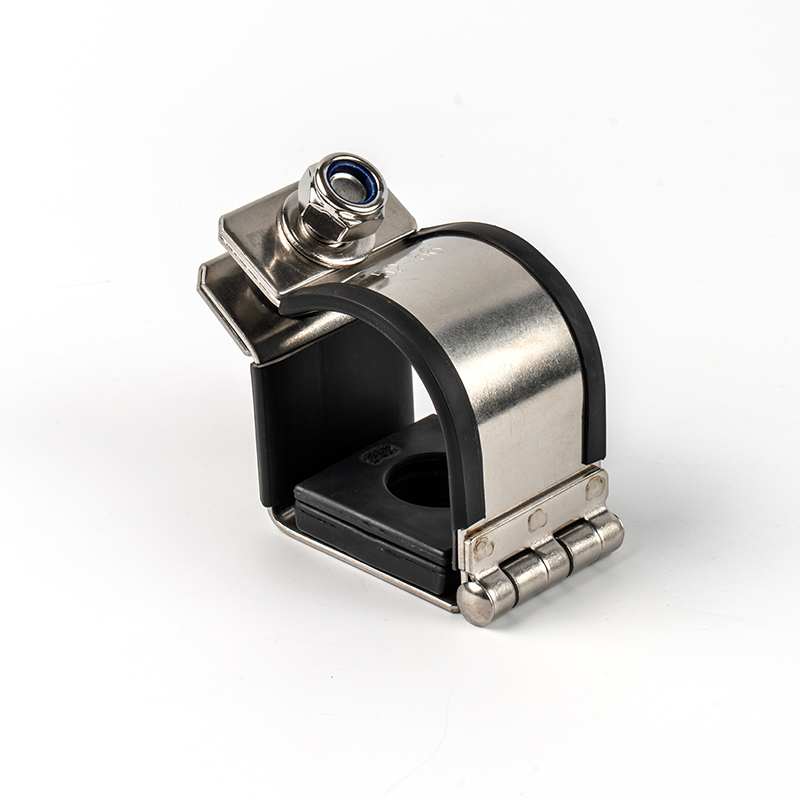

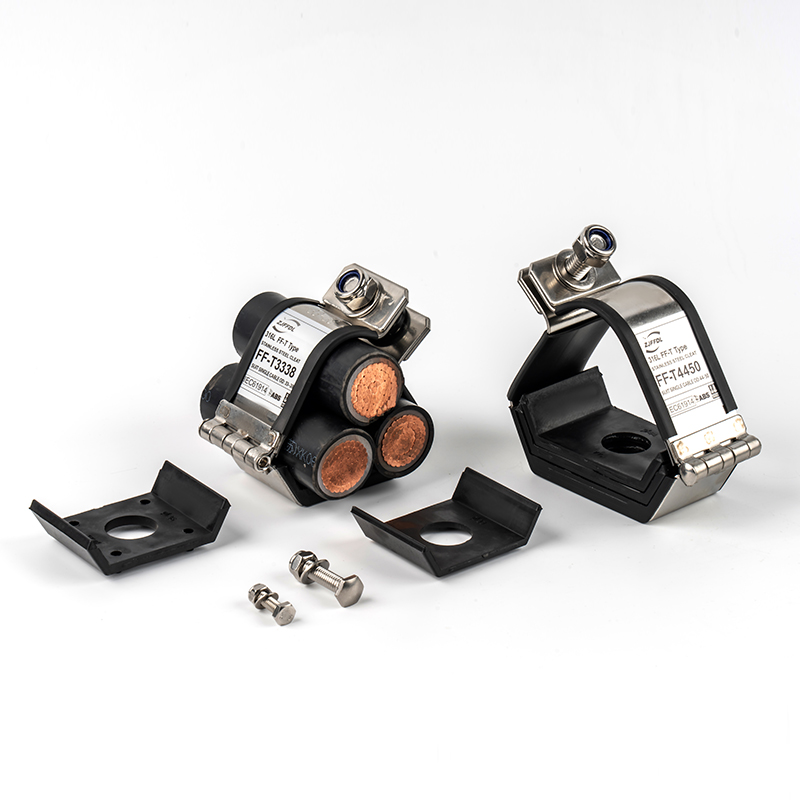

FENGFAN Cable Cleats are designed to support and retain your cables within your cable tray system in every condition. More importantly, they prevent the damage in short-circuit conditions. Unfortunate...
See Detail

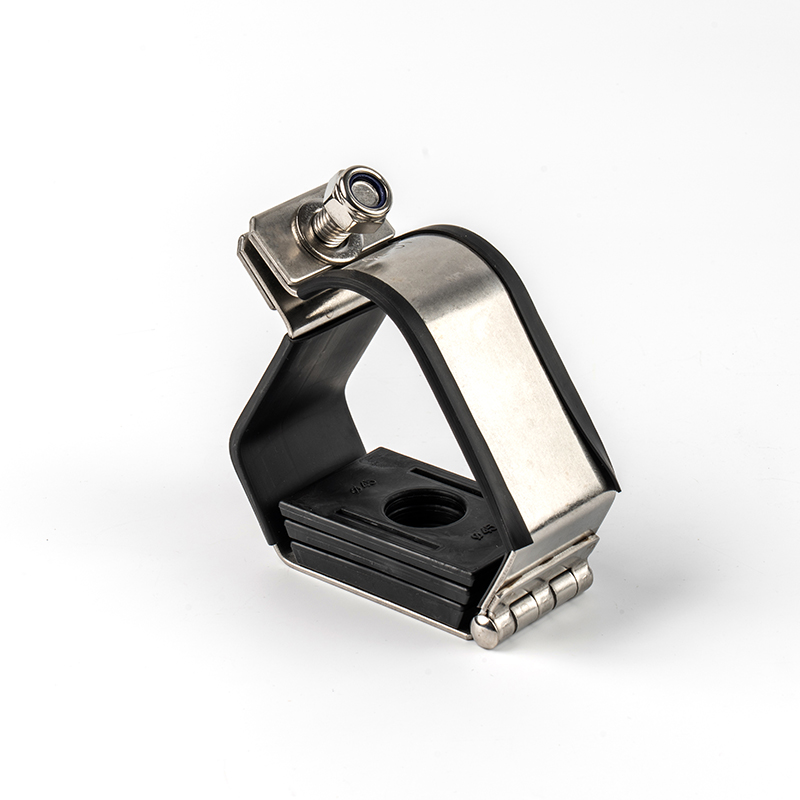

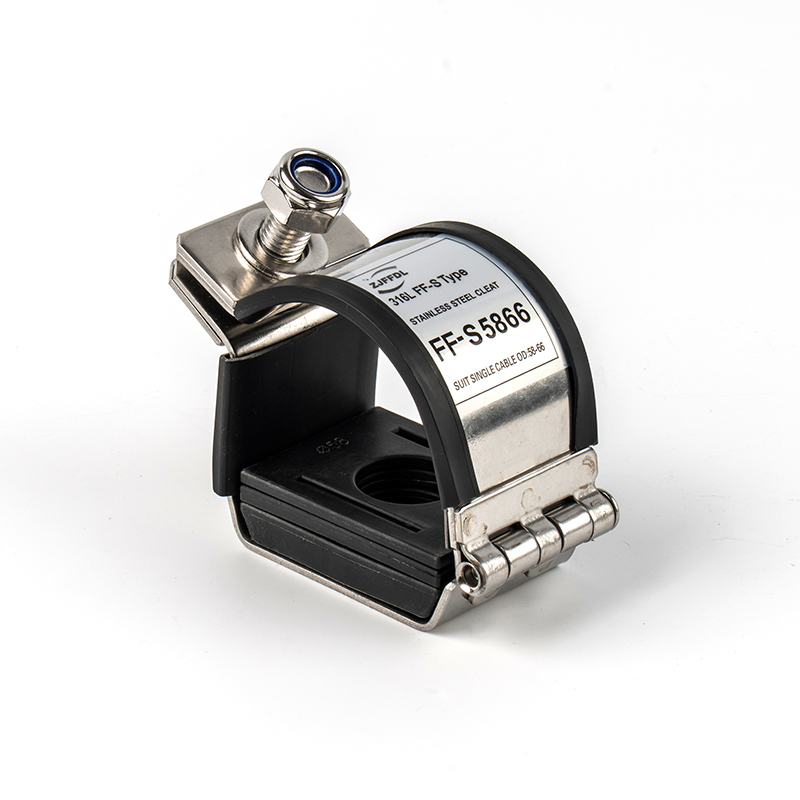

FENGFAN Cable Cleats are designed to support and retain your cables within your cable tray system in every condition. More importantly, they prevent the damage in short-circuit conditions. Unfortunate...
See Detail

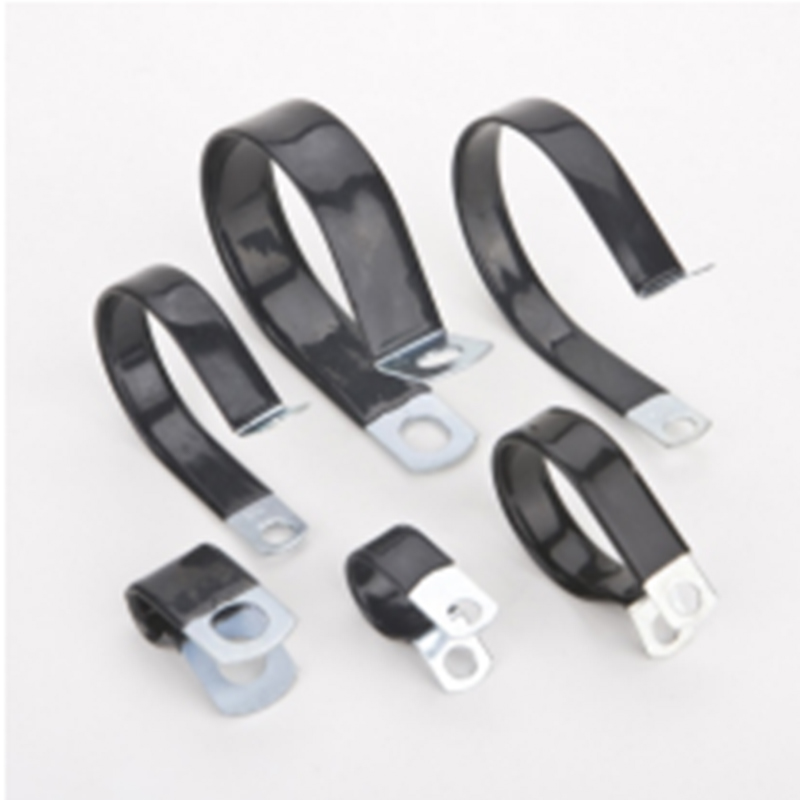

Technical InformationMetal Material: Stainless Steel, GalvanizedSteel(Carbon Steel; Plated Steel)Soft Material: Vinyl(PVC) Product FeatureFor pipes, cables, groups of cables, hoses and so on.The meta...
See Detail

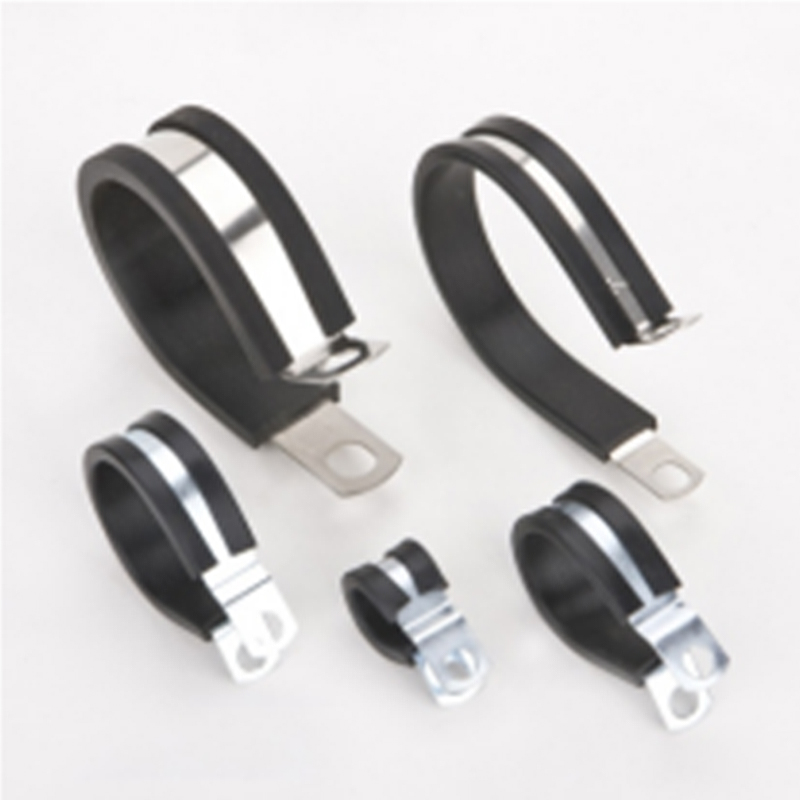

Technical InformationMetal Material: Stainless Steel, Galvanized Steel(Carbon Steel; Plated Steel), AluminumSoft Material: Rubber Product FeatureFor pipes, cables, groups of cables, hoses and so on.Th...
See Detail

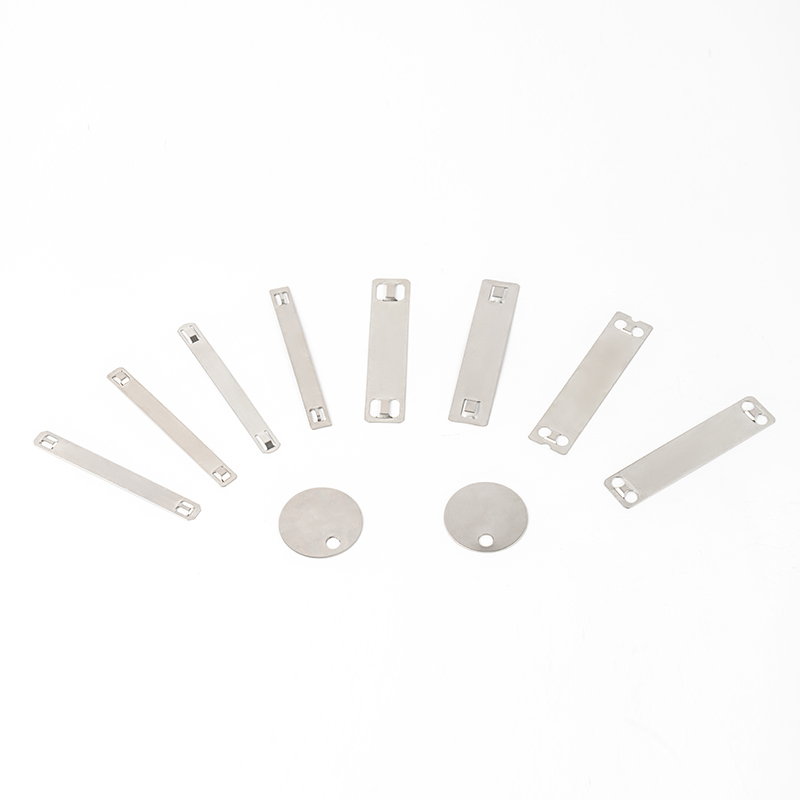

Technical Information Material: Stainless Steel Grade 304 or 316; Copper Temperature: -80℃ to +538℃ Colour: Metallic Product FeatureIdentify pipes, conduit, values, cables and equipment in petrochemi...
See Detail

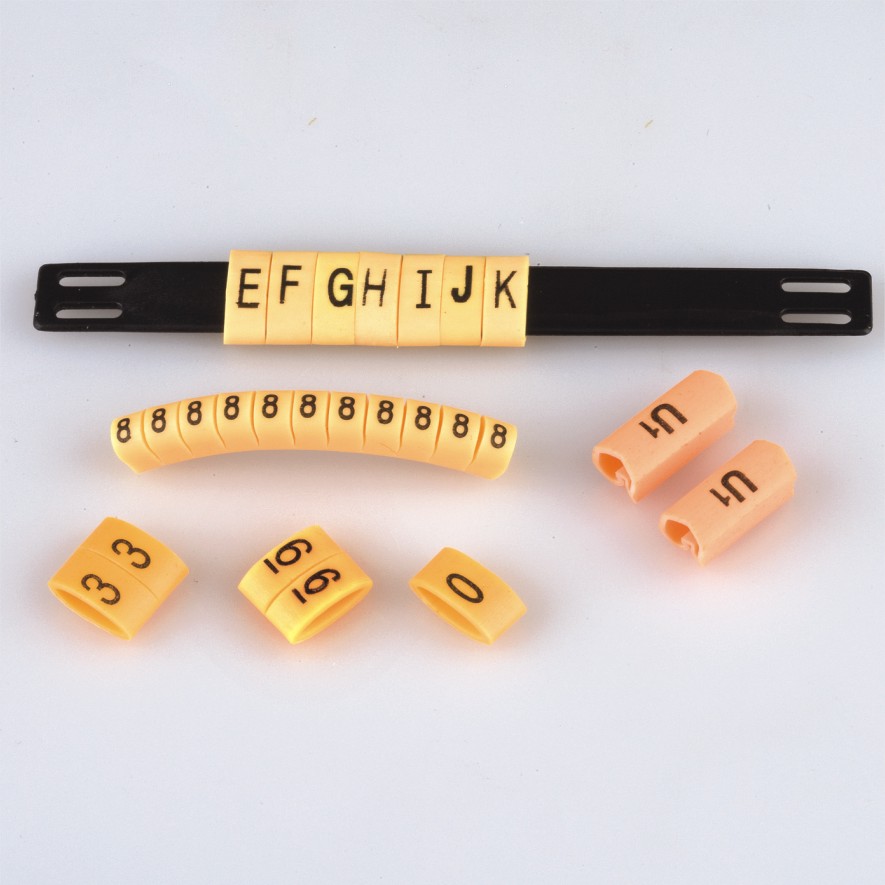

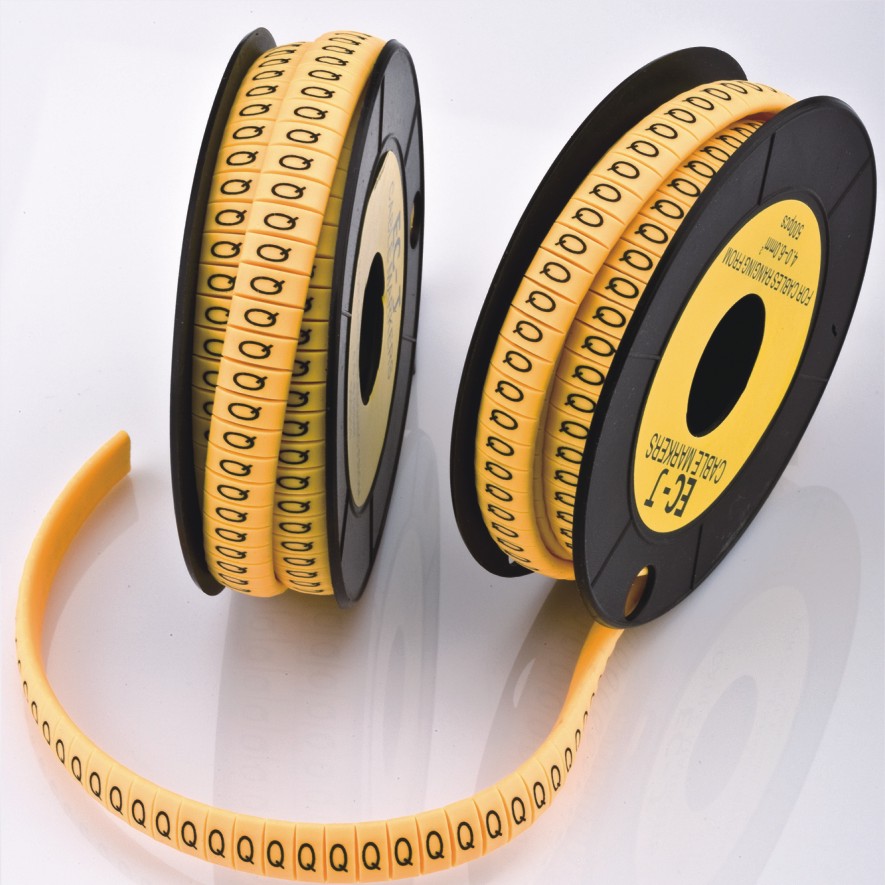

Technical InformationMaterial: PVCColor: White, YellowPacking: Roll
See Detail

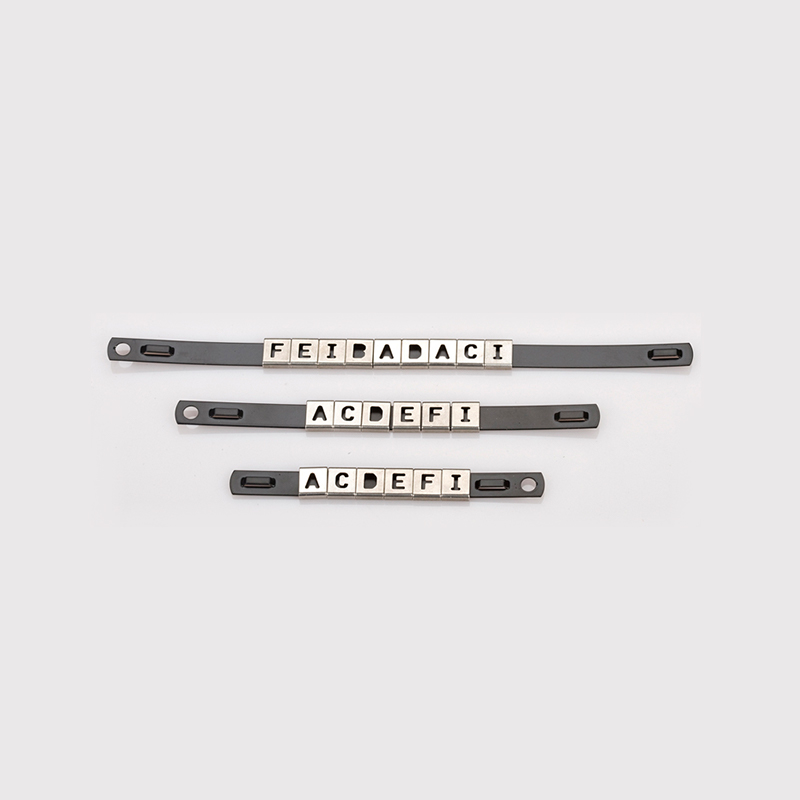

Technical Information：Material: Stainless Steel Grade 304or316Coating: Polyester/Epoxy, Nylon 11Colour: Black
See Detail

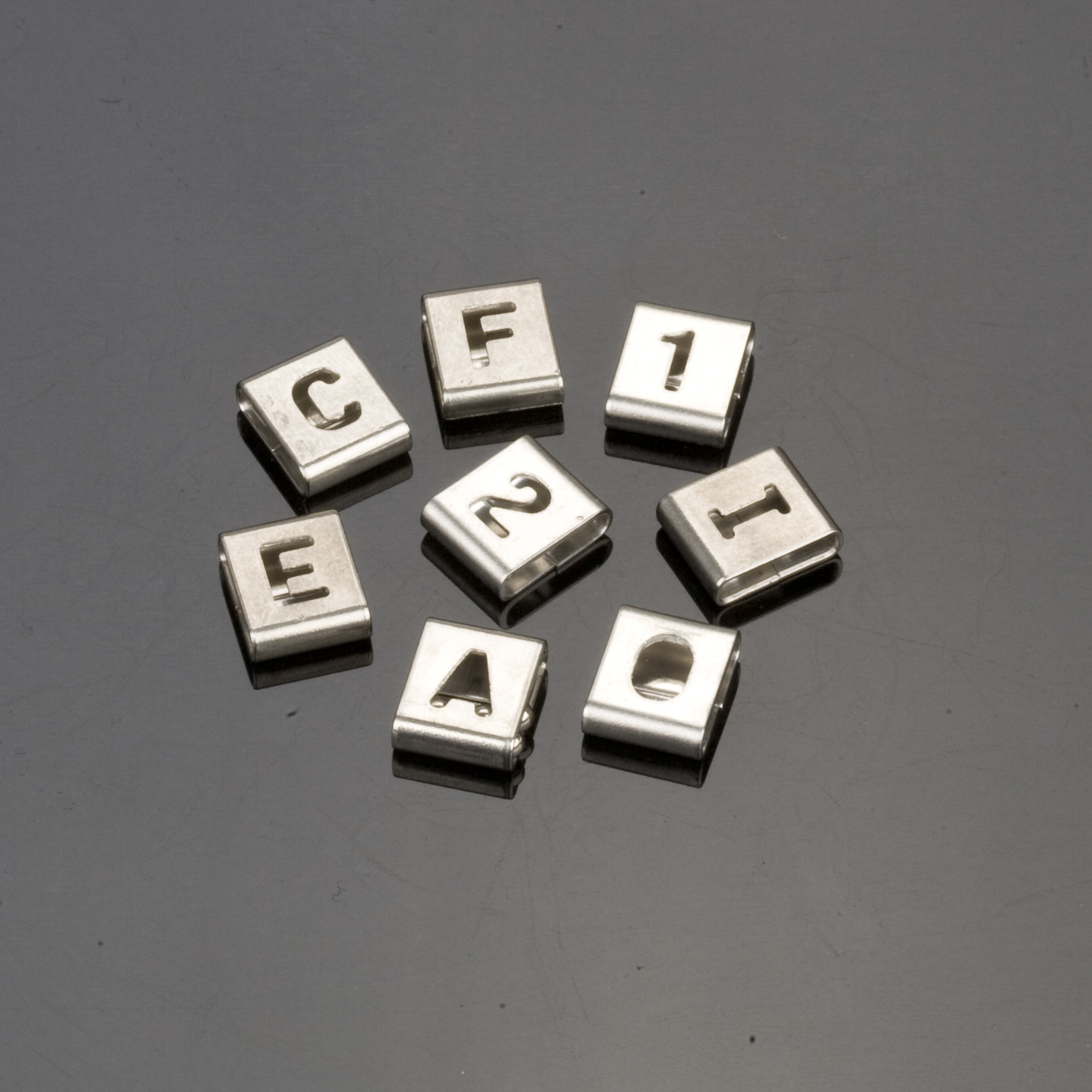

Technical Information：Material: Stainless Steel Grade 3040r316Colour: Metallic Product Feature：Easy to read in dim light and inaccessible places.Complete range of individual letters, numbers, and symb...
See Detail

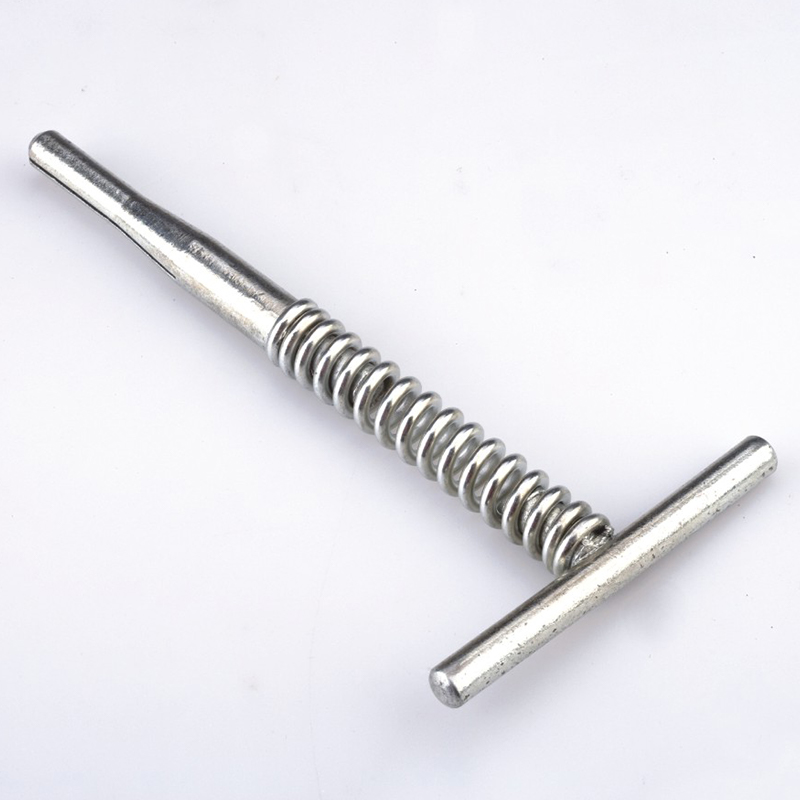

Product Feature: Manual Tension, no cut-off Economical and practical The tail is rolled, when the tool is taken off. Coiled tie is remained, after tension assures a safe end.
