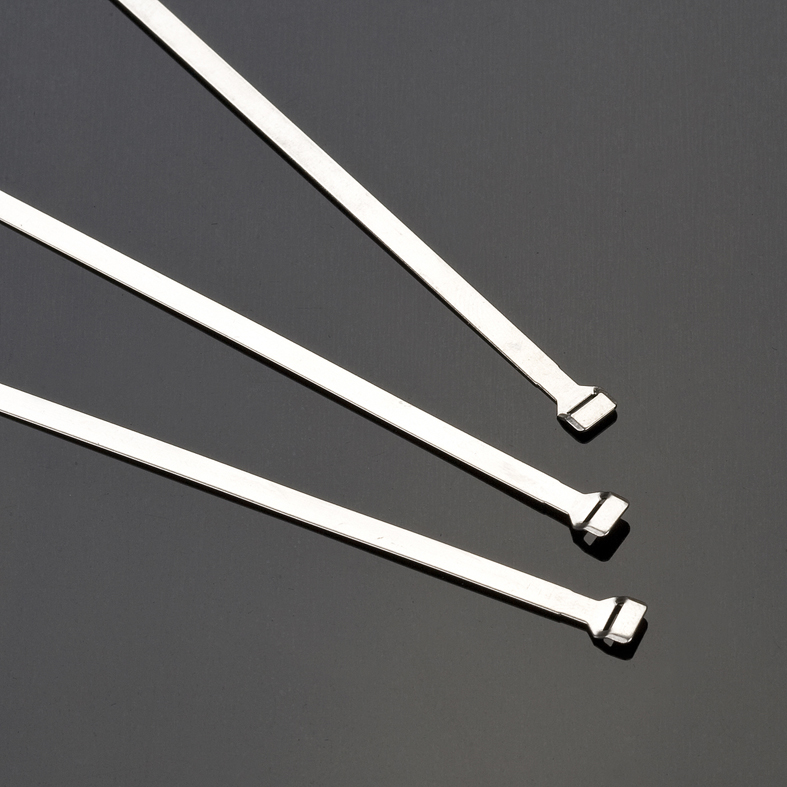

Technical Information
Material: Stainless Steel Grade 304
Working Temp:: -80°C to 538°C
Description: Entirely Metallic
Flammability: Fireproof
Other Properties: UV-resistant.
Product Feature
No welding, soldering and crimping.
Double Wrapped, the band is designed to clamp small-diameter objects as easily, quickly and reliably as the large diameter ones.
Provide quick, easy, permanent EMP/EMI/RFI shield terminations on any ball shell configuration.
Maintain tension under the harshest condition to eliminate potential leakage paths.
Tested to shock, vibration and thermal cycles.
| Item No. | Width | Length | Thickness | Max.Bundle Dia. | Min.Bundle Dia. | Min.Tensile Strength | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | |
| JZMIS-3*206 | 3 | 0.118 | 206 | 8.11 | 0.35 | 0.014 | 23 | 0.9 | 6.35 | 0.25 | 900 | 200 |
| JZMIS-3*362 | 362 | 14.25 | 48 | 1.9 | ||||||||
| JZMIS-6*362 | 6 | 0.236 | 362 | 14.25 | 0.50 | 0.020 | 23 | 0.9 | 6.35 | 0.25 | 3115 | 700 |
