Technical Information
Material: Stainless Steel Grade 304 or 316
Coating: PVC
Working Temp: -40°C to 85°C

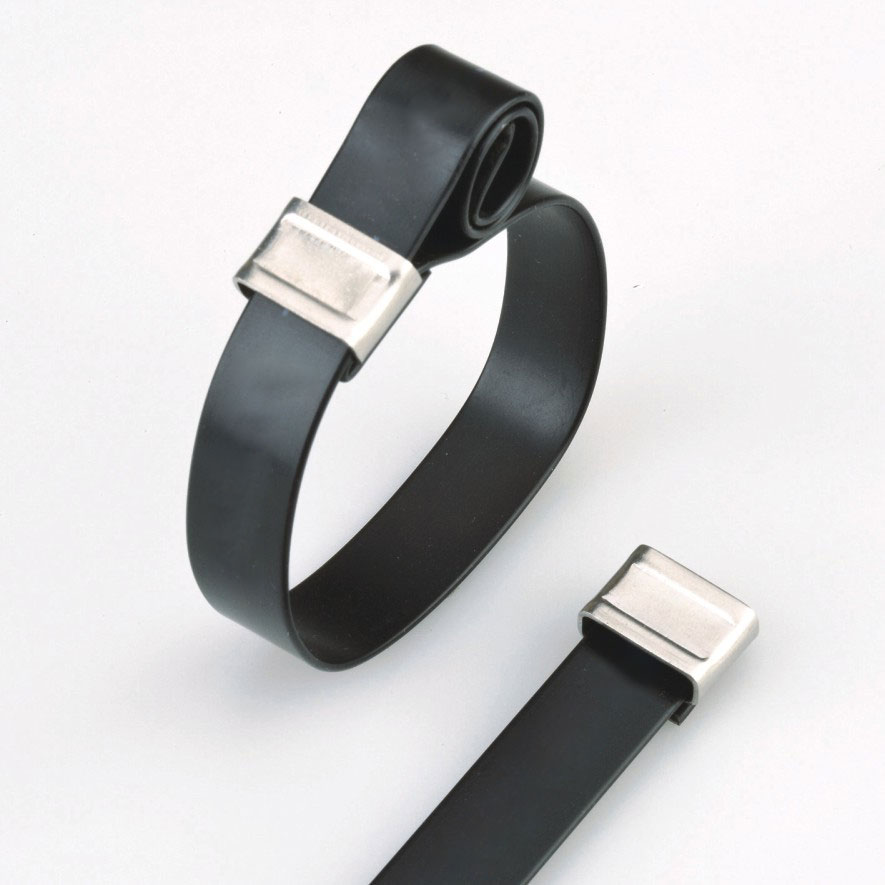

Description: Black Strap with Metallic Buckle
Flammability: Fireproof
Other Properties: UV-resistant
Product Feature
No slippage when cut end is rolled in.
Metallic buckle helps to distinguish from black nylon tie.
PVC coating is thicker and softer, than polyester coating.
Prevent corrosion between dissimilar metals.
Provide additional edge protection.
| ltem No. | Width | Length | Thickness | Max.Bundle Dia. | Min.Bundle Dia. | Min.Tensile Strength | Recommended Installation Tool |
||||||
| mm | inch | mm | inch | mm | inch | mm | inch | mm | inch | N | lbs | ||
| FZOSJ-13*200 | 13 | 0.51 | 200 | 7.87 | 1.1 | 0.043 | 48 | 1.88 | 25.4 | 1.00 | 220 | 50 | T-tools |
| FZ0SJ-13*250 | 250 | 9.84 | 64 | 2.51 | |||||||||
| FZ0SJ-13*300 | 300 | 11.81 | 80 | 3.13 | |||||||||
| FZ0SJ-13*350 | 350 | 13.78 | 96 | 3.76 | |||||||||
| FZOSJ-13*400 | 400 | 15.75 | 111 | 4.39 | |||||||||
| FZ0SJ-13*450 | 450 | 17.72 | 127 | 5.02 | |||||||||
| FZ0SJ-13*500 | 500 | 19.69 | 143 | 5.64 | |||||||||
| FZ0SJ-13*600 | 600 | 23.62 | 175 | 6.90 | |||||||||
| FZOSJ-13*700 | 700 | 27.56 | 207 | 8.15 | |||||||||
| FZ0SJ-13*800 | 800 | 31.50 | 239 | 9.40 | |||||||||
| FZ0SJ-16*200 | 16 | 0.63 | 200 | 7.87 | 1.1 | 0.043 | 48 | 1.88 | 25.4 | 1.00 | 250 | 60 | T-tools |
| FZOSJ-16*250 | 250 | 9.84 | 64 | 2.51 | |||||||||
| FZ0SJ-16*300 | 300 | 11.81 | 80 | 3.13 | |||||||||
| FZ0SJ-16*350 | 350 | 13.78 | 96 | 3.76 | |||||||||
| FZ0SJ-16*400 | 400 | 15.75 | 111 | 4.39 | |||||||||
| FZ0SJ-16*450 | 450 | 17.72 | 127 | 5.02 | |||||||||
| FZOSJ-16*500 | 500 | 19.69 | 143 | 5.64 | |||||||||
| FZ0SJ-16*600 | 600 | 23.62 | 175 | 6.90 | |||||||||
| FZ0SJ-16*700 | 700 | 27.56 | 207 | 8.15 | |||||||||
| FZ0SJ-16*800 | 800 | 31.50 | 239 | 9.40 | |||||||||
| FZOSP-16*1000 | 1000 | 39.37 | 303 | 11.91 | |||||||||
- For other lengths available, contact FENGFAN customer service.
- For information on installation tools, refer to the tools pages.
- Please add the material grade by the end of the item number.
